2500T Highly Durable and Highly Productive for Extruding Aluminum Profile

Brand Name : Huanan

Model Number : HN-2500T

Certification : ISO

Place of Origin : Guangdong

MOQ : 1 Pcs

Payment Terms : LC,T/T

Supply Ability : 5pcs/ 2 Months

Delivery Time : 3 Months

Packaging Details : Wooden pallet

Power : Electric energy

Size : Customizable

Use : Aluminum Extrusion

Motor : Servo or ordinary motor

Functional : Automatic or semi-automatic

Surface treatment : Heat treatment

Material : Steel Forging

Color : Customized

Contact Now

2500T Highly Durable and Highly Productive for Extruding Aluminum Profile

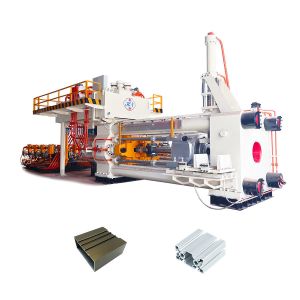

The 2500T Aluminum Extrusion Press is a heavy-duty industrial machine designed for high-volume production of large and complex aluminum profiles. With a 2,500-ton pressing force, it is capable of extruding thick, wide, or intricate aluminum sections used in demanding industries like aerospace, automotive, construction, and rail transport.
Product Specifications
Attribute Value
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Material Steel Forging
Color Customized
Technical Parameters
Parameter Value
Standard billet size (Outer diameter) Φ236mm
Standard billet size (Length) 1150mm
Main Piston Φ1080mm
Machine extrusion force 25Mpa (2515T)
Dimensions of mold base cavity (Diameter) Φ480mm
Dimensions of mold base cavity (Depth) H480mm
Total Power 850KW
Key Components
Component Specification
Main oil pump (Hilectro brand) HP13096-G102W-R1P4 *5
Liquid cooling driver HI200-160KW *5
Main oil pump (Germany Rexroth) A15V280 31.5MPa variable pumps
Auxiliary pump (Tokyo Keiki) SQP43-60-38
Advantages of Short-Stroke Back Loading Structure
  • The short-stroke extruder features a shorter extrusion stroke compared to conventional aluminum extruders, enhancing frame rigidity by 30%
  • Reduced main side cylinder volume decreases hydraulic oil consumption and improves speed/pressure control accuracy
  • Eliminates gasket circulation system, reducing reactive operations and power consumption by 15%
  • Servo motor-driven translation manipulator further reduces non-extrusion time by 15%
2500T Highly Durable and Highly Productive for Extruding Aluminum Profile
Application Fields
  • Construction Industry
  • Industrial Trade
  • New Energy Industry
  • Photovoltaic Industry
Aluminum profiles are extensively utilized in various applications including structural components, decorative elements, and support systems for both industrial and residential buildings.
2500T Highly Durable and Highly Productive for Extruding Aluminum Profile
Technical Characteristics
  • Critical components feature well-established designs with low failure rates
  • Minimal impact and vibration significantly reduce oil leakage likelihood
  • Rapid response time with high efficiency and minimized non-extrusion periods
  • High precision with extrusion speed control within ±0.1mm
  • High automation level reduces operator demands
Equipment Gallery
2500T Highly Durable and Highly Productive for Extruding Aluminum Profile 2500T Highly Durable and Highly Productive for Extruding Aluminum Profile
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is one of the best equipment for extrusion manufacturers in China. Under normal conditions, the machine lifespan exceeds 15 years, with many well-known aluminum manufacturers as our customers.
Q2: How to choose the right type machine?
Provide your profile sectional drawing dimensions, and we'll calculate the suitable machine size for your production needs.
Q3: Will Huanan provide installation service?
We send technicians to install equipment and train your employees when installation conditions are met at your facility.
Q4: What is the delivery time of Huanan Machines?
Delivery times range from 30 days for small machines (600-1000MT) to 180 days for large machines (2000-3000MT). Complete production lines require 3-10 months.
Q5: What services Huanan can do for you?
We provide comprehensive services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
