High Productivity Customizable 2750T Aluminum Extrusion Machine Press Profile
Product Specifications
| Power | Electric energy |
| Size | Customizable |
| Use | Aluminum Extrusion |
| Motor | Servo or ordinary motor |
| Functional | Automatic or semi-automatic |
| Surface treatment | Heat treatment |
| Material | Steel Forging |
| Color | Customized |
Product Overview
The 2750T aluminum extrusion press is a heavy-duty, high-efficiency machine designed for large-scale production of aluminum profiles used in construction, automotive, aerospace, and industrial applications. With 2700 tons of extrusion force, it processes large billets into complex, high-strength profiles with precision and speed.
Technical Parameters
| Standard billet size (Outer diameter) | Φ236mm |
| Standard billet size (Length) | 1150mm |
| Main Piston | Φ1080mm |
| Machine extrusion force | 26Mpa (2700T) |
| Dimensions of mold base cavity (Diameter) | Φ480mm |
| Dimensions of mold base cavity (Depth) | H480mm |
| Total Power | 850KW |
Key Advantages
- The short-stroke extruder features a shorter extrusion stroke compared to conventional aluminum extruders, enhancing frame rigidity by 30%
- Reduced hydraulic oil consumption improves accuracy in speed and pressure control while lowering energy consumption
- Elimination of gasket circulation system reduces reactive operations and power consumption by 15%
- Servo motor-driven translation manipulator further reduces non-extrusion time by 15%
Application Fields
- Construction Industry
- Industrial Trade
- New Energy Industry
- Photovoltaic Industry
Aluminum profiles are extensively utilized in various applications including structural components, decorative elements, and industrial building solutions, delivering excellent performance and results.
Technical Characteristics
- Critical components feature well-established designs with low failure rates
- Minimal impact and vibration significantly reduce oil leakage likelihood
- Rapid response time with high efficiency and minimized non-extrusion periods
- High precision with extrusion speed control within ±0.1mm
- High automation level reduces operator and maintenance demands

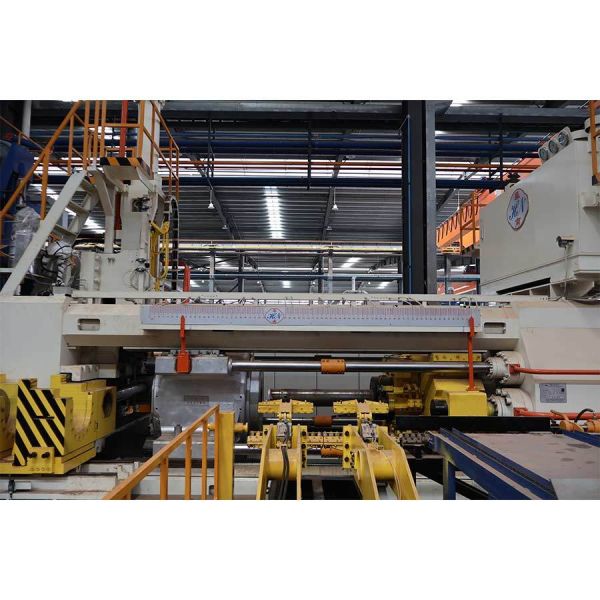

Equipment Gallery
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to customer feedback, under normal conditions, the machine lifespan reaches 15+ years. Many well-known aluminum manufacturers are our customers.
Q2: How to choose the right type machine?
Provide your profile sectional drawing dimensions, and we'll calculate the suitable machine size based on your requirements.
Q3: Will Huanan provide installation service?
When equipment arrives and meets installation conditions, we send technicians for installation and operator training.
Q4: What is the delivery time of Huanan Machines?
- 600-1000MT: 30 days
- 1250-1800MT: 45-60 days
- 2000-3000MT: 180 days
- 3000MT+: 6-12 months
Complete production lines require 3-10 months.
Q5: What services Huanan can do for you?
Huanan provides comprehensive services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
